Characteristic< T, typename std::enable_if< std::is_arithmetic< T >::value >::type > Class Template Reference
A characteristic for built-in arithmetic types (int, float, etc) More...
#include <cs_Characteristic.h>
Inheritance diagram for Characteristic< T, typename std::enable_if< std::is_arithmetic< T >::value >::type >:

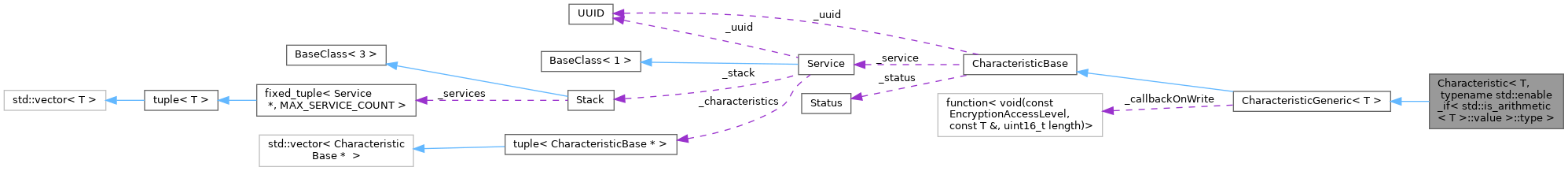

Collaboration diagram for Characteristic< T, typename std::enable_if< std::is_arithmetic< T >::value >::type >:
Public Member Functions | |
| void | operator= (const T &val) |
| uint8_t * | getValuePtr () |
| Return the pointer to the memory where the value is stored In the case of aes encryption, this is the pointer to the unencrypted value. More... | |
| uint16_t | getValueLength () |
| Return the actual length of the value In the case of aes encryption, this is the length of the unencrypted data. More... | |
| uint16_t | getGattValueLength () |
| Return the actual length of the value used by the gatt server In the case of aes encryption, this is the length of the encrypted value otherwise it's the same as the value length. More... | |
| uint16_t | getGattValueMaxLength () |
| Return the maximum length of the value used by the gatt server In the case of aes encryption, this is the maximum length that the value can be when encrypted. More... | |
 Public Member Functions inherited from CharacteristicGeneric< T > | |
| virtual | ~CharacteristicGeneric () |
| Default empty destructor. | |
| T & | getValue () |
| Return the value In the case of aes encryption, this is the unencrypted value. | |
| void | onWrite (const callback_on_write_t &closure) |
| Register an on write callback which will be triggered when a characteristic is written over ble. | |
| operator T& () | |
| CharacteristicGeneric() returns value object In the case of aes encryption, this is the unencrypted value. More... | |
| void | operator= (const T &val) |
| Assign a new value to the characteristic so that it can be read over ble. More... | |
| void | setDefaultValue (const T &t) |
| Set the default value. | |
| Public Member Functions inherited from CharacteristicBase | |
| CharacteristicBase () | |
| Unit. More... | |
| virtual | ~CharacteristicBase () |
| Empty destructor. | |
| void | init (Service *svc) |
| Initialize the characteristic: add it to the softdevice. More... | |
| void | setName (const char *const name) |
| Set the name of this characteristic. | |
| void | setWritable (bool writable) |
| Set this characteristic to be writable. | |
| void | setNotifies (bool notifies) |
| Set this characteristic to be notifiable. | |
| bool | isNotifyingEnabled () |
| void | setNotifyingEnabled (bool enabled) |
| void | setIndicates (bool indicates) |
| void | setUUID (const UUID &uuid) |
| uint16_t | getValueHandle () |
| uint16_t | getCccdHandle () |
| void | setSharedEncryptionBuffer (bool val) |
| virtual uint16_t | getGattValueMaxLength ()=0 |
| Return the maximum length of the value used by the gatt server In the case of aes encryption, this is the maximum length that the value can be when encrypted. More... | |
| virtual void | setGattValueLength (uint16_t) |
| Set the length of the value used by the gatt server In the case of aes encryption, this is the length of the encrypted value otherwise it's the same as the value length which is a fixed value for normal types (arithmetic types and strings) but has to be set for buffer values because they have dynamic length. More... | |
| virtual uint16_t | getGattValueLength ()=0 |
| Return the actual length of the value used by the gatt server In the case of aes encryption, this is the length of the encrypted value otherwise it's the same as the value length. More... | |
| uint8_t * | getGattValuePtr () |
| Return the pointer to the memory where the value is accessed by the gatt server. More... | |
| virtual uint8_t * | getValuePtr ()=0 |
| Return the pointer to the memory where the value is stored In the case of aes encryption, this is the pointer to the unencrypted value. More... | |
| virtual void | setValueLength (uint16_t) |
| Set the actual length of the data @length the length of the data to which the value points. More... | |
| virtual uint16_t | getValueLength ()=0 |
| Return the actual length of the value In the case of aes encryption, this is the length of the unencrypted data. More... | |
| virtual void | onWrite (uint16_t len)=0 |
| Helper function which is called when a characteristic is written over BLE. More... | |
| uint32_t | updateValue (ConnectionEncryptionType encryptionType=ConnectionEncryptionType::CTR) |
| Update the value in the gatt server so that the value can be read over BLE If somebody is also listening to notifications for the characteristic notifications will be sent. | |
| virtual uint32_t | notify () |
| Notify any listening party. More... | |
| void | onNotifyTxError () |
| Callback function if a notify tx error occurs. More... | |
| virtual void | onTxComplete (const ble_common_evt_t *p_ble_evt) |
| Callback function once tx operations complete @p_ble_evt the event object which triggered the onTxComplete callback. More... | |
| void | setAesEncrypted (bool encrypted) |
| Enable / Disable aes encryption. More... | |
| bool | isAesEnabled () |
| Check if aes encryption is enabled. | |
| void | setMinAccessLevel (EncryptionAccessLevel level) |
| buffer_ptr_t & | getEncryptionBuffer () |
| get the buffer used for encryption | |
| Service * | getService () |
Additional Inherited Members | |
| Public Types inherited from CharacteristicGeneric< T > | |
| typedef function< void(const EncryptionAccessLevel, const T &, uint16_t length)> | callback_on_write_t |
| Format of callback on write (from user) | |
| Protected Member Functions inherited from CharacteristicGeneric< T > | |
| void | onWrite (uint16_t len) |
| Helper function if a characteristic is written over ble. More... | |
| virtual bool | configurePresentationFormat (ble_gatts_char_pf_t &presentation_format) |
| Configure the characteristic value format (ble specific) More... | |
| void | initEncryptionBuffer () |
| Initialize / allocate a buffer for encryption. More... | |
| void | freeEncryptionBuffer () |
| Free / release the encryption buffer. More... | |
| virtual void | initEncryptionBuffer ()=0 |
| Initialize the encryption buffer to hold the encrypted value. More... | |
| virtual void | freeEncryptionBuffer ()=0 |
| Free / release the encryption buffer. More... | |
| virtual bool | configurePresentationFormat (ble_gatts_char_pf_t &) |
| Configure the characteristic value format (ble specific) More... | |
| Protected Attributes inherited from CharacteristicGeneric< T > | |
| T | _value |
| The generic type is physically located in this field in this class (by value, not just by reference) In the case of aes encryption, this is the unencrypted value. | |
| callback_on_write_t | _callbackOnWrite |
| The callback to call on a write coming from the softdevice (and originating from the user) | |
| Protected Attributes inherited from CharacteristicBase | |
| const char * | _name = nullptr |
| Name of this characteristic. | |
| UUID | _uuid |
| UUID of this characteristic. | |
| ble_gatts_char_handles_t | _handles |
| Handles. | |
| Service * | _service = nullptr |
| Reference to corresponding service. | |
| Status | _status |
| Status of CharacteristicBase (basically a bunch of 1-bit flags) | |
| buffer_ptr_t | _encryptionBuffer = nullptr |
| EncryptionAccessLevel | _minAccessLevel = ADMIN |
| used for encryption. More... | |
Detailed Description
template<typename T>
class Characteristic< T, typename std::enable_if< std::is_arithmetic< T >::value >::type >
class Characteristic< T, typename std::enable_if< std::is_arithmetic< T >::value >::type >
A characteristic for built-in arithmetic types (int, float, etc)
Member Function Documentation
◆ getGattValueLength()
template<typename T >
|
inlinevirtual |
Return the actual length of the value used by the gatt server In the case of aes encryption, this is the length of the encrypted value otherwise it's the same as the value length.
Implements CharacteristicBase.
◆ getGattValueMaxLength()
template<typename T >
|
inlinevirtual |
Return the maximum length of the value used by the gatt server In the case of aes encryption, this is the maximum length that the value can be when encrypted.
for normal types (arithmetic types and strings) this is a fixed value, for dynamic types, the max length has to be set at construction In the case of no encryption, for normal types, this is the same as the value length
Implements CharacteristicBase.
◆ getValueLength()
template<typename T >
|
inlinevirtual |
Return the actual length of the value In the case of aes encryption, this is the length of the unencrypted data.
For normal types (arithmetic and strings) this is a fixed value. For buffer types it is dynamic
Implements CharacteristicBase.
◆ getValuePtr()
template<typename T >
|
inlinevirtual |
Return the pointer to the memory where the value is stored In the case of aes encryption, this is the pointer to the unencrypted value.
Implements CharacteristicBase.
The documentation for this class was generated from the following file:
- source/include/ble/cs_Characteristic.h
